Creative Glass Container Office: Folding and Affordable
You must not know that this is actually a folding flat-pack container house. Folding flat-pack container houses are also called sliding z container houses. The name comes from the fact that during the folding process of this kind of container house, it looks like two "Z"s.

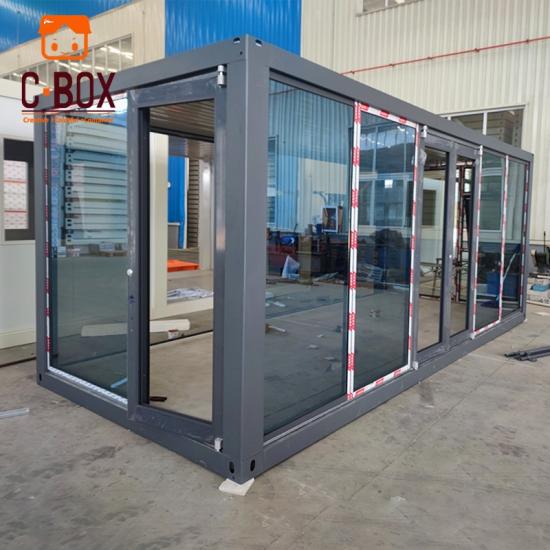

A customer added some glass shapes on the basis of folding flat-pack container houses. Please enjoy this customer's design below.
- Collapsible—— It can be folded and unfolded easily with a crane control. You can store it in a compact size when not in use, or transport it to different locations. This product is also known as a foldable flat-pack container house or a collapsible flat-pack house.
- Quick-build——It can be assembled and disassembled in less than 10 minutes. You only need to connect the power and water supply, and you are ready to move in. This product is also known as a quick-build container house or an install folding container house.
- Sliding Structure——Use a special sliding structure to connect the column with the top frame. When it is opened, the top frame drives the column and side wall panels to rise together, saving a lot of time. This product is also known as a sliding z box or a sliding z container house.
The creative glass container office is a stylish and functional way to reuse old glass container houses and reduce environmental impact. It has a transparent and airy feel that allows natural light and ventilation. It also has features like solar panels, insulation, and soundproofing
| Product Specifications | Folded Height | H=440mm 40HQ can load 10 sets |
| L*W*H(mm) |
5830mm*2500mm*2470mm Inner size: 5650mm*2320mm*2200mm |
|
| Roof Form | Flat Roof | |
| Number Of Layers | ≤2 layers | |
| Structure | Column |
Specification 50mm*160mm Roller Beam Material Thickness 2.3mm Material Q235B |
| Roof Main Beam |
Specification 50*160mm Roller Beam Material Thickness 2.3mm Material=Q235B |
|
| Roof Secondary Beam |
Galvanized Cold Rolled Section Steel C Type Material Thickness=1.0mm 6 Pices Material Q235B |
|
| Ground Main Beam |
Height 50*140mm Roller Beam Material Thickness 2.3mm Material=Q235B |
|
| Ground Secondary Beam |
Galvanized Cold Rolled Section Steel C Type Material Thickness 1.5mm 9 Pices Material=Q235B |
|
| Bolt | 8.8 Class High-Strength Bolts, 6 | |
| Paint | Electrostatic spraying plastic powder baking varnish ≥80μm | |
| Roof | Roof Panel |
EPS Color Steel Sandwich Panel Thickness=50mm Color White-Gray Free fall |
| Ground | Substrate | 18mm Fireproof Glass Magnesium Board |
| Wall | Insulation Cotton |
50mm Thickness Color Steel EPS Sandwich Panel Class B Fireproof |
| Color steel Plate | Panel Coler Streel Plate Thickness 0.4mm | |
| Door | Specification | Width×Height=840mm*1900mm |
| Material |
Steel Door Concealed Lock |
|
| Window | Specification | 950mm*1100mm |
| Fram Material | Plastic Steel | |
| Glass | Single Layer Glass |
|
NEW |
OLD |
Folding times≥100 |
Folding times≈50 |
Lifespan 15 yrs |
Lifespan 10-12 yrs |
|
|
Brand new in 2023 |
Old fashion |
Can be stacked 3 layers |
Can be stacked 2 layers |
Guangdong Cbox Co., Limited. which covers 350,000 square meters and has an annual output of 200,000 containers, focusing on designing and developing, producing, selling, installing, operating, and serving as a whole, providing one-stop box rental and manufacturing for customers.
C.Box covers a series of products such as steel structure workshops, flat pack container house, modified shipping container house, detachable container house, folding container house, expandable container house, portable ion, installation, Services, and other one-stop solutions.
After 15 years of hard work by the company's core team, it has obtained 46 invention patents and utility model patents.
We take the need of customers as the base, green safe, economical, and comfortable living experience as the root and development of the industry as the purpose.
