Steps of Installation of Foldable Container House
2024-09-29
Steps of Installation of Foldable Container House

In order to welcome the upcoming Canton Fair and show the latest upgrades of CBOX to customers visiting the factory, CBOX placed the newly upgraded foldable container house in the display area today and showed the installation process to the customers present.

Installation process of CBOX foldable container house:

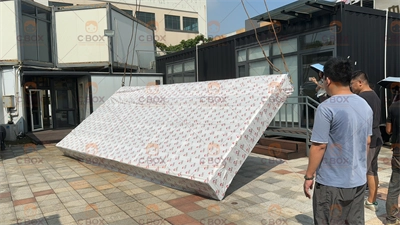

1. Unloading:


Use the hook provided by CBOX with the foldable container house to hook the four upper corner pieces of the eight corner pieces of the foldable container house, place it steadily and slowly on the flat ground, and then remove the hook. Please note: each corner piece has three holes, and only the largest round hole is the correct place to hook the hook.

foldable container house

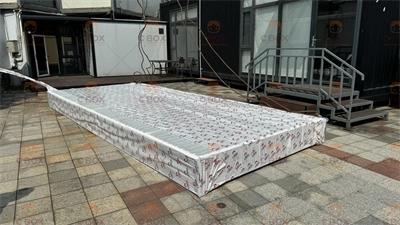

2. Tear off the film:


Tear off the protective film exclusive with the CBOX logo. Surrounding the foldable container house with this protective film can effectively protect it from scratches during transportation.

foldable container house

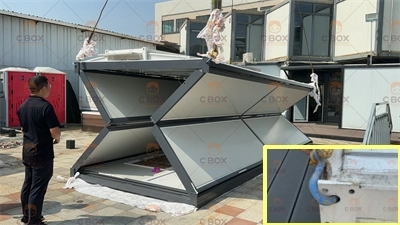

3. Raise the top part:


After removing the fixings at the four corners of the foldable container house, use the hook to hook the four lower corner pieces of the eight corner pieces of the foldable container house, and then operate the crane to raise the hook to raise the top of the foldable container house.

foldable container house

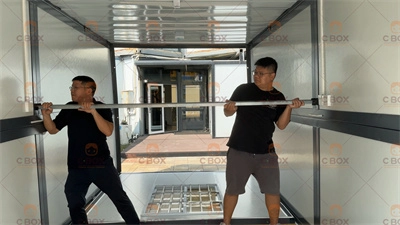

4. Place the support rod:


After keeping the hook in the raised state and fixing the position, place a support rod in the middle of the container house to maintain the stability and strength of the box and ensure the safety of the workers in case the hook fails to lift and the top part loses control and falls.

foldable container house

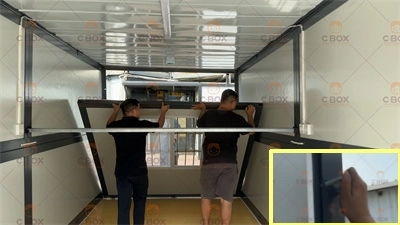

5. Raise the rear wall:


Lift the wall with a window and push it outward. When the wall and the rear end of the foldable container house are completely fitted, place the screws and nuts on the outside and inside of the foldable container house respectively, and tighten the bolts with a wrench.

foldable container house

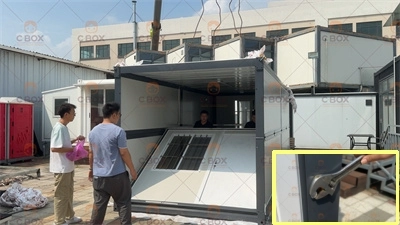

6. Raise the front wall:


Lift the other wall with doors and windows and push it outward, and repeat the previous step.

foldable container house

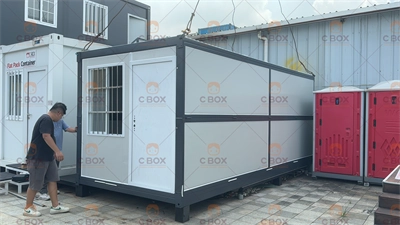

7. Fix the position:


Keep the hook in working condition, place the container house at the final location and determine the balance of the container house, then remove the hook.

foldable container house

8. Complete the installation
